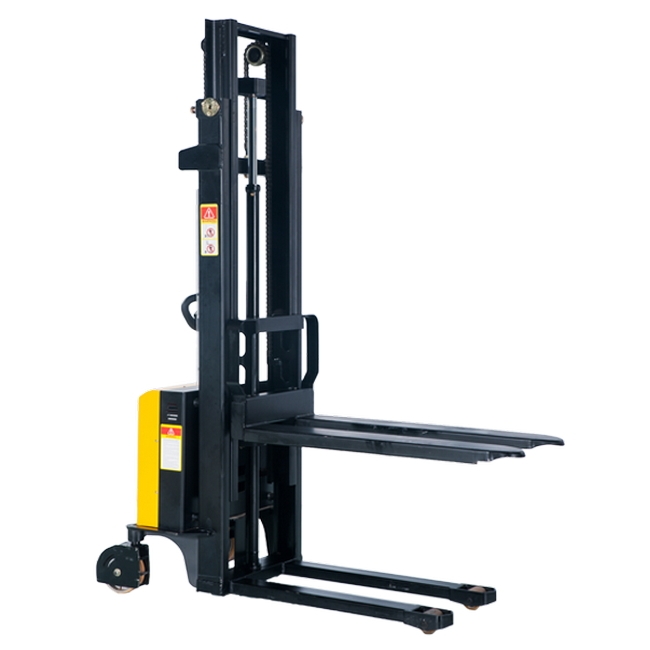

Pallet Stacker Electric – Walk Behind – 1500kg Capacity – 3.3m Lift – ES1500-3300

R92,159.00 Ex VAT

Capacity: 1500kg
Load centre: 600mm
Lowered height: 90mm
Maximum lifting height: 3300mm
Drive unit: Electric
Service brake type: Electronic
Minimum turning radius: 2065mm
Battery and charger included
Single wheels: 70(W) x 80(?) mm
External dimensions: 1770 (L) x 800 (W) x 3300 (H) mm
Item delivery usually 3 – 6 working days – Optional load test certificate available
Return Restrictions applicable – see Shipping and Returns T&C’s

1 in stock

SKU: SW-ES1500-3300 Category: Stackers Tags: Lifting Equipment, Materials Handling, Stackers

The fully electric stacker is designed to allow maximum usage with minimal effort.

It speeds up your operations and helps saves time and it also helps out reduce injury claims.
Lowering speed: 150mm / 128mm.
Heavy-duty steel construction.
Motor travelling: 1200W / 24V.
Motor lifting: 3000W / 24V.
Front roller tandem: 78mm x 70mm.
Rear roller: 150mm x 50mm.
Drive wheel: 250mm x 80mm.
Travel speed: laden/unladen: 5.2Km/h / 6.8Km/h.
Lifting speed: laden/unladen:127mm / 170mm.
Load centre: 600mm.
Battery charger: 30A / 24V.
Traction battery: 240Ah / 24V.
Robust steel construction with a yellow and black powder coated finish.

Products specifications

Colour	Yellow
Material	Steel
Product Weight	1000kg
External Dimensions	1770 (L) x 800 (W) x 3300 (H)mm
Maximum Carrying Load	3300kg
Maximum Lift Height	3300mm
Maximum Lifting Load	1500kg
Material Details	Steel
Wheels	70mm (W) x 80 (?)mm Single Nylon Wheels
Lowered Height	90mm
Drive Motor	DC 2.2kW
Load Centre	600mm
Minimum Turning Radius	2065mm
Mechanism	Full Electric
Product Source	China
Whats in the box	1 x Pallet Stacker Electric
Warranty	One-year limited product warranty
