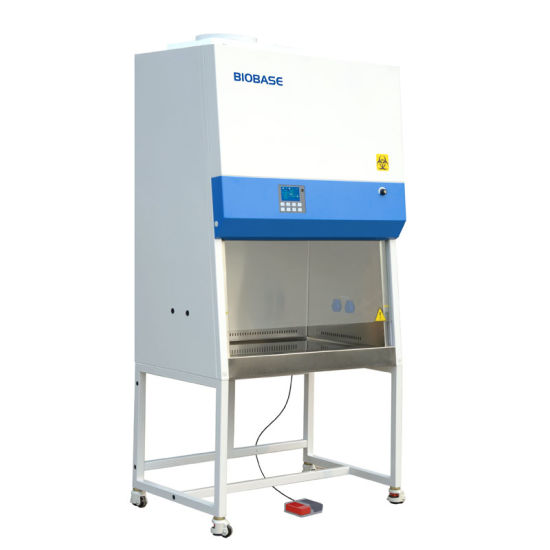

Biological Safety Cabinets Class II B2

Biological Safety Cabinets Class II B2 quantity Add to basket
Lead Time: 4-6 Weeks. The Special Cabinets are manufactured upon an order.
• Weight: 276 kg
• Dimensions: 1460 × 1050 × 1800 cm
• Model: BSC-1100IIB2-X | BSC-1300IIB2-X | BSC-1500IIB2-X | BSC-1800IIB2-X
• Internal Size (W*D*H): 940*600*660 mm | 1150*600*660 mm | 1350*600*660mm | 1700*600*660 mm
• External Size (W*D*H): 1100*750*2250mm | 1300*750*2250mm | 1500*760*2250mm | 1873*775*2270mm
• Tested Opening: Safety Height 200 mm(8”) Max Opening | 420mm(17”) | 420mm(17”) | 500mm(20”) | 480mm(20”)
• Inflow Velocity: 0.53±0.025 m/s
• Down flow Velocity: 0.33±0.025 m/s
• Pre-Filter: Washable HEPA Filter | Two, 99.999% efficiency at 0.3 μm,filter life indicator.
• Front Window: Motorized,two-layer laminated toughened glass ≥ 5mm,anti UV.
• Noise: EN1246949 ≤ 58 dB
• UV Lamp: 30W*1 | 30W* 1 | 40W* 1 | 40W*1
• Illuminating Lamp: LED Lamp | LED Lamp | LED Lamp | LED Lamp 12W*2 | 14W*2 | 16W*2 | 16W*2
• Illumination: ≥1000Lux
• Consumption: 700W | 850W | 900W | 1200W
• Waterproof Sockets: Two, total load of two sockets: 500W
• Display: LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
• Control System: Microprocessor
• Airflow System: 0% air recirculation, 100% air exhaust
• Alarm: Abnormal airflow velocity; Filter replacement; Front window at unsafe height.
• Exhaust Duct: 4 meters PVC duct, Diameter:300mm
• Material: Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating.
• Work Surface Height: 750mm
• Caster: Foot master caster
• Power Supply: AC 220V±10%, 50/60Hz; 110V±10%, 60Hz (110V/60Hz is not applicable to BSC-1800IIB2-X)
• Standard Accessory: Illuminating lamp, UV lamp*2,base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets*2, pipe strap*2
• Optional Accessory: Water and gas tap, Electric height adjustable base stand
• Gross Weight: 246kg | 276kg | 302kg | 408kg
• Package: Main Body | 1230* 990* 1810 mm | 1460*1050*1800 mm | 1650*990*1810 mm | 2000*950*1820 mm Exhaust Blower (W*D*H) | 970* 810* 630 mm | 970* 810* 630 mm | 970* 810* 630 mm | 970* 810* 680 mm

• 99.999% efficient HEPA Filter
• Motorized front window
• LCD display
• Microprocessor control system
• 0% air recirculation, 100% air exhaust
